@wavemaker/react-native-widgets

React Native UI widgets — QR code, avatar stack, segment progress, swipe deck, reorder list, signature pad, maps and Skia effects — all on iOS, Android and web, behind one public contract per widget.

• Live Storybook: https://wavemaker.github.io/wm-react-native-widgets

---

Installation

npm install @wavemaker/react-native-widgets
npm install react-native-svg react-native-gesture-handler react-native-reanimated

Five widgets come off the package root:

import { QrCode, AvatarStack, SegmentProgress } from '@wavemaker/react-native-widgets';

<QrCode value="https://www.wavemaker.com" size={180} />
<AvatarStack dataset={members} maxVisible={4} />
<SegmentProgress dataset={segments} total={128} />

The other three each pull a peer of their own, so they are reached on their own subpath and never enter a bundle that did not ask for them:

Widget	Import from	Also install
SkiaEffect	@wavemaker/react-native-widgets/skiaeffect	npm install @shopify/react-native-skia
SignaturePad	@wavemaker/react-native-widgets/signaturepad	npm install react-native-webview — native only
Maps	@wavemaker/react-native-widgets/maps	npx expo install react-native-maps expo-location; for web, npm install @vis.gl/react-google-maps

Metro does not tree-shake, so importing anything from the root pulls in every widget the root re-exports. Keeping these three off it is what makes their peers genuinely optional — install one only if you import the widget that needs it.

Every widget is importable on its own subpath, not just those three:

import { QrCode } from '@wavemaker/react-native-widgets/qrcode';

---

The widgets

QR Code	Avatar Stack
Segment Progress	Swipe Deck
Reorder List	Signature Pad
Skia Effect	Maps

Widget	Description	iOS / Android	Web

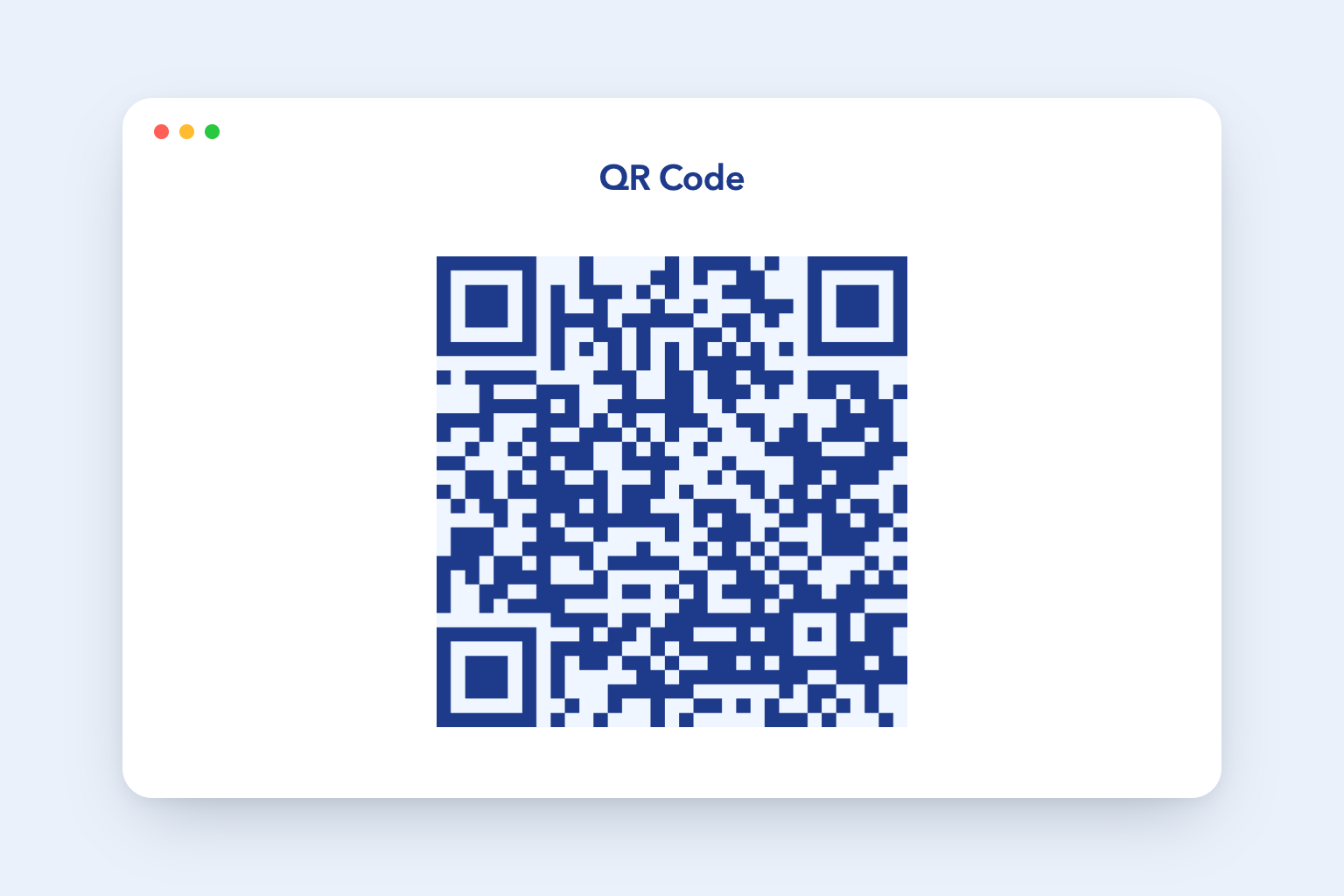

QR Code	Vector QR symbol with an optional centered logo	✅	✅
Avatar Stack	Overlapping avatars, presence dots, +N overflow	✅	✅

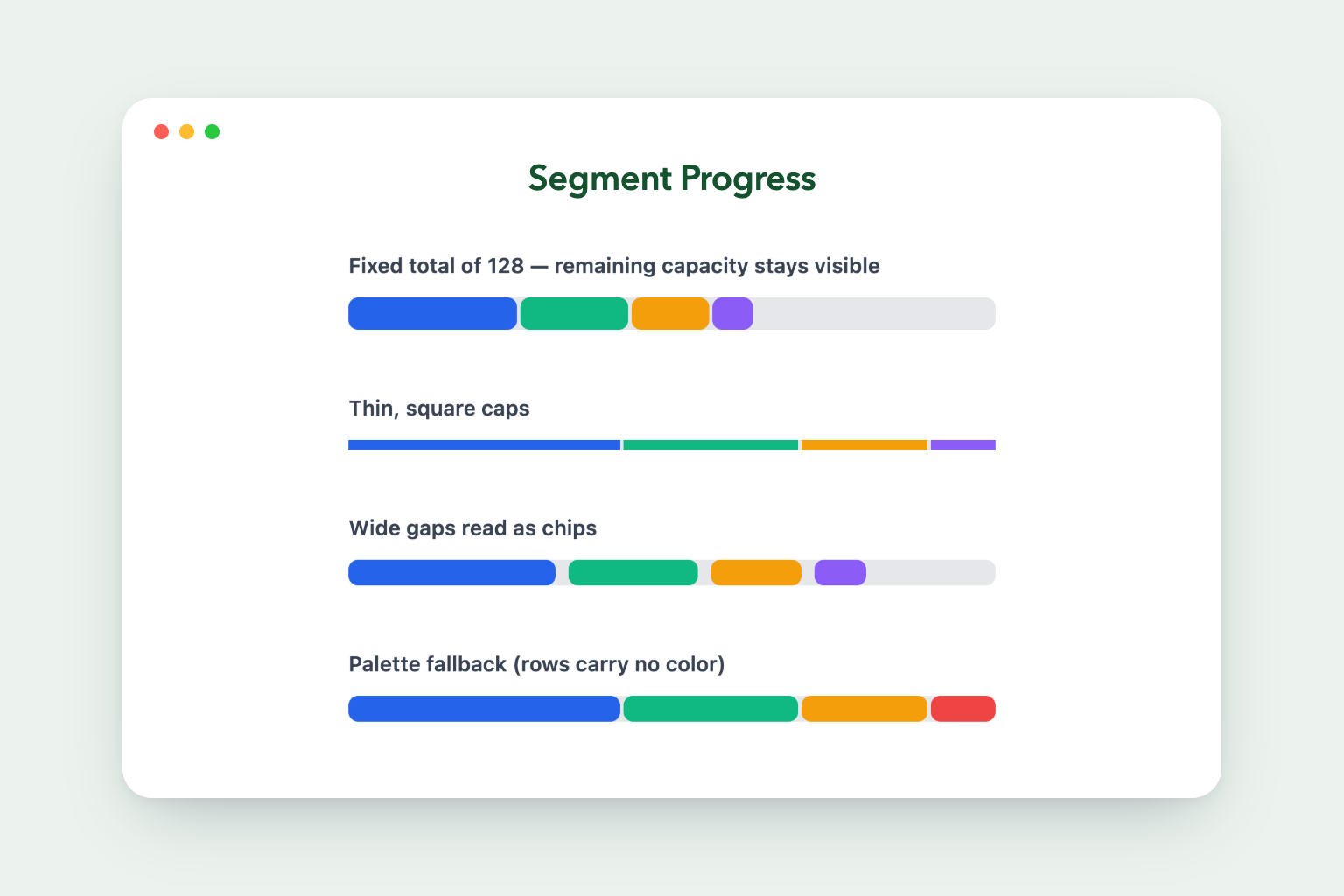

Segment Progress	Multi-segment bar with per-segment rounded caps	✅	✅

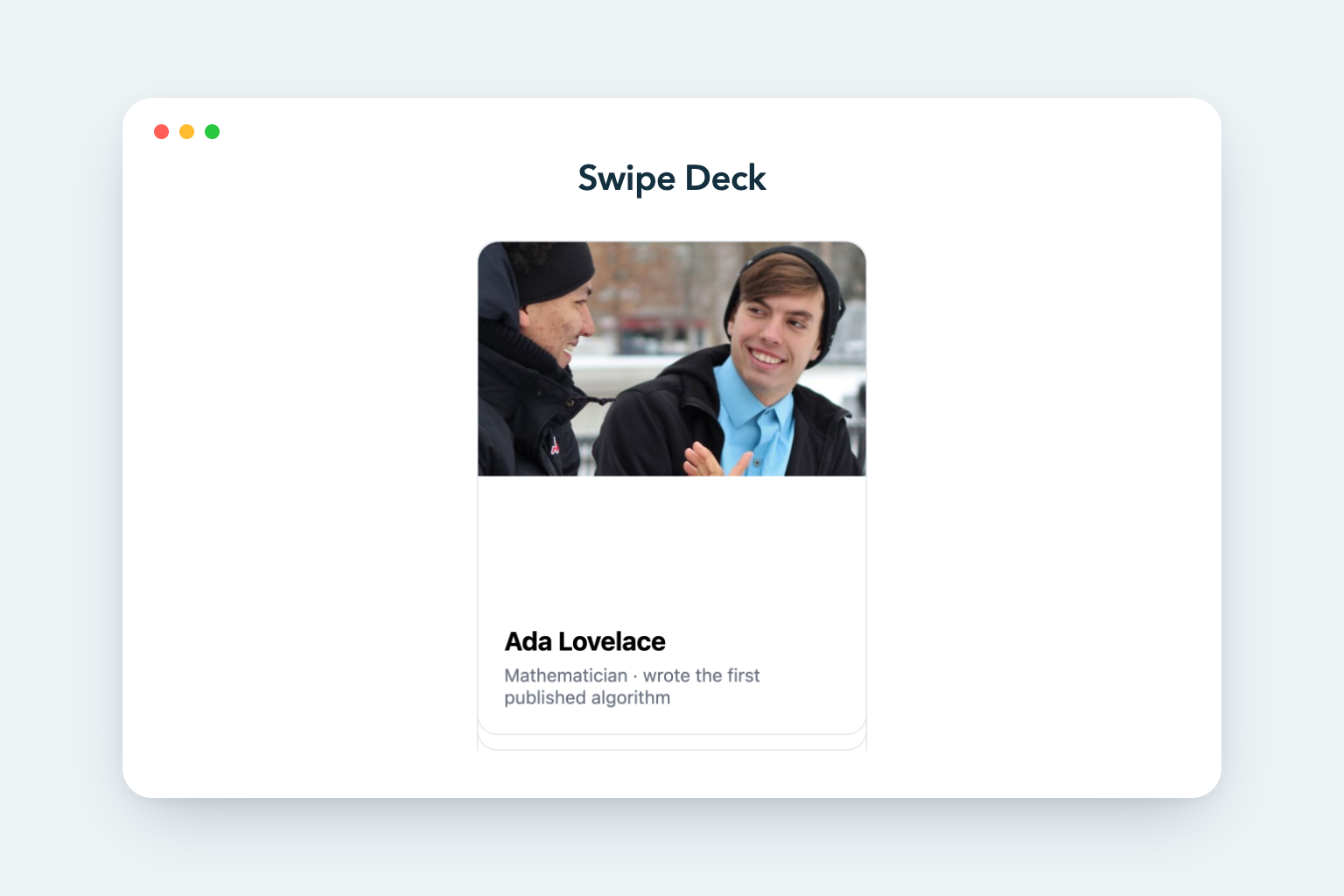

Swipe Deck	Card deck with pan physics and accept/reject gestures	✅	✅

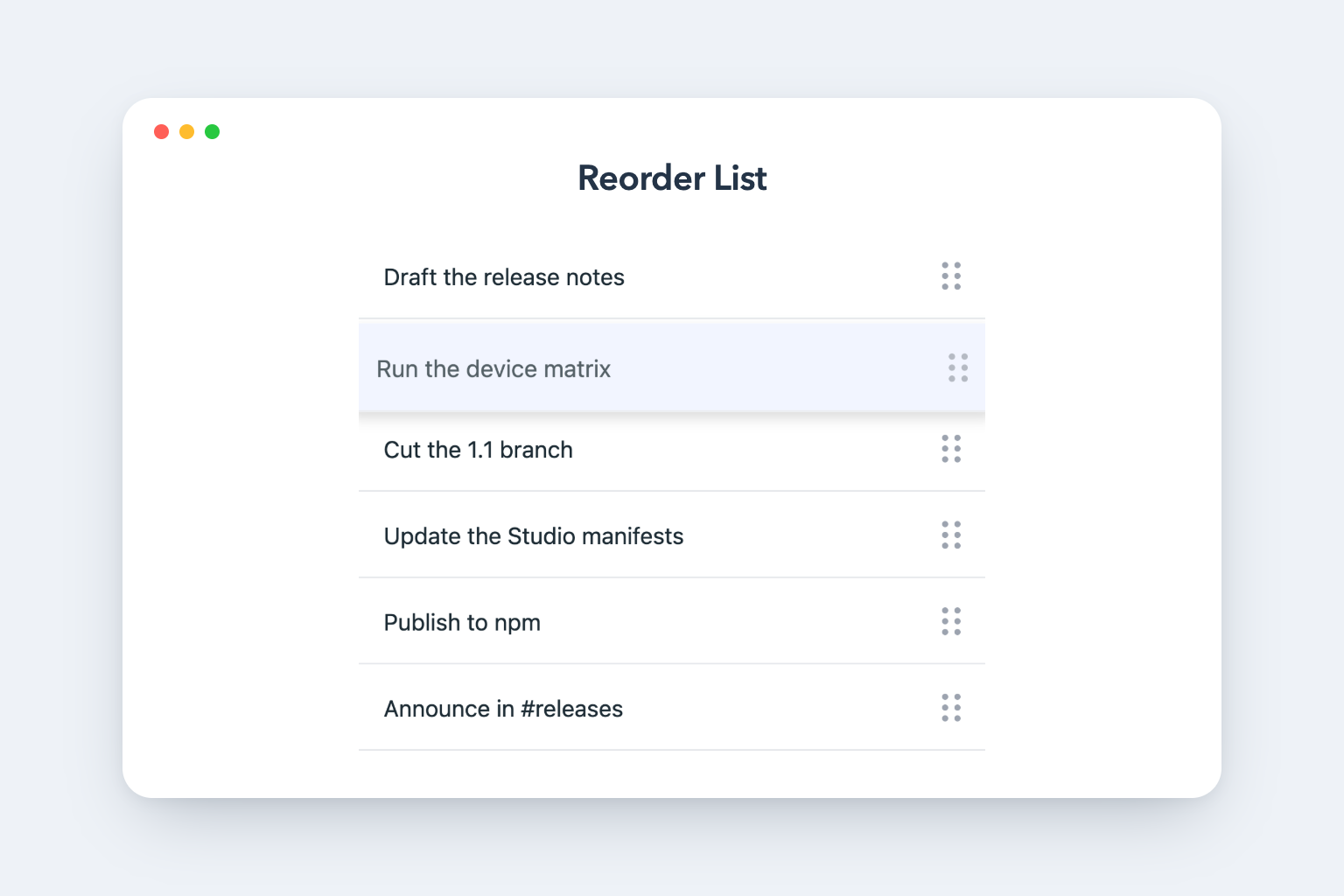

Reorder List	Long-press and drag rows into a new order	✅	⚠️
Signature Pad	Freehand capture exported as a base64 PNG	✅	✅
Skia Effect	Blend modes and blur through a per-pixel canvas	✅	✅
Maps	Google/Apple map with pins, routes and user location	✅	✅

Three widgets could not reach web through their native library, so each ships a separate web implementation behind the same public contract — selected by platform file extension, so the native-only dependency never enters the web bundle:

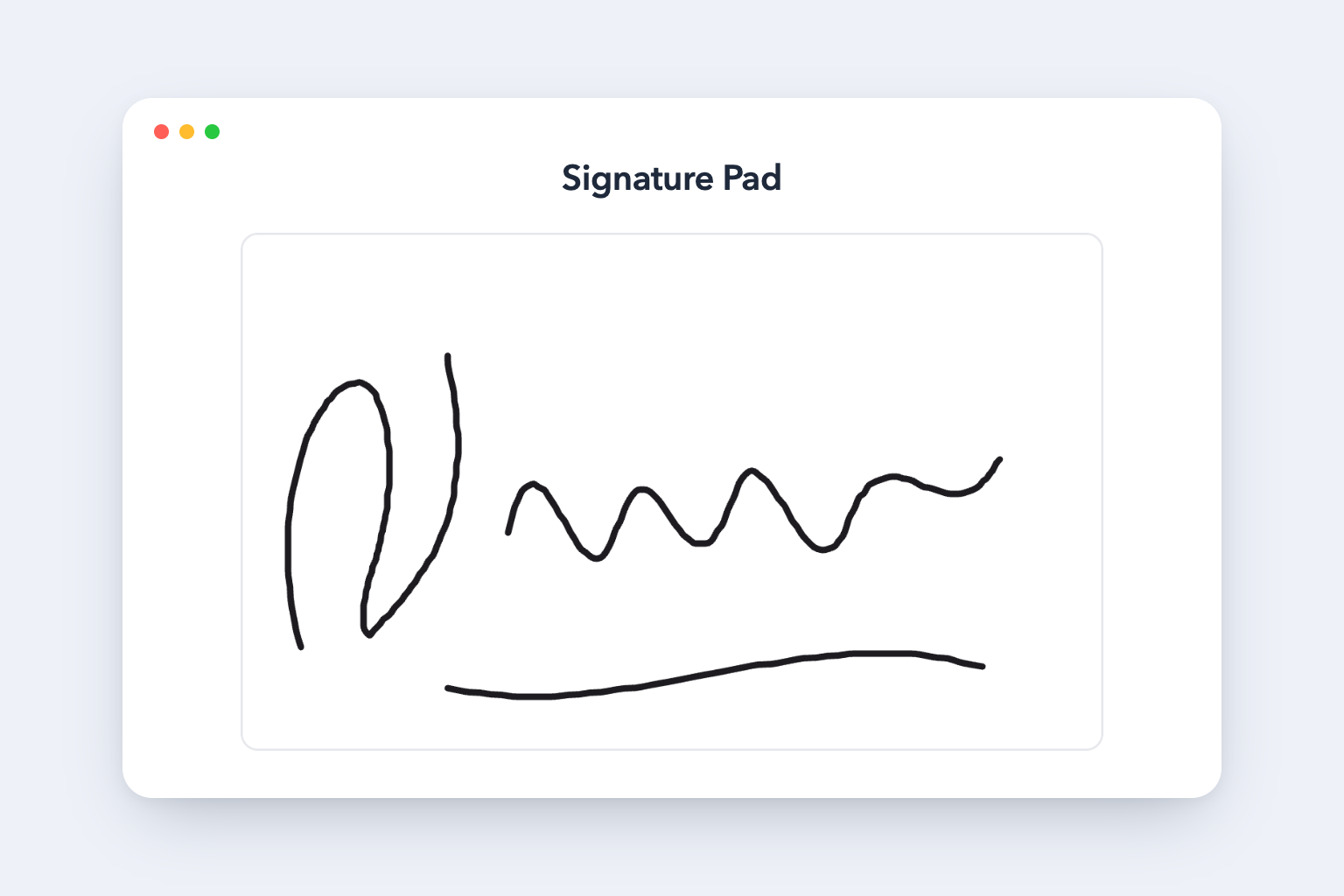

• Signature Pad — react-native-signature-canvas needs a WebView, which react-native-web has no equivalent for. The web build captures pointer strokes and rasterizes them, returning the same base64 PNG, so pages never branch on platform. Stroke width is fixed on web and speed-tapered on device.

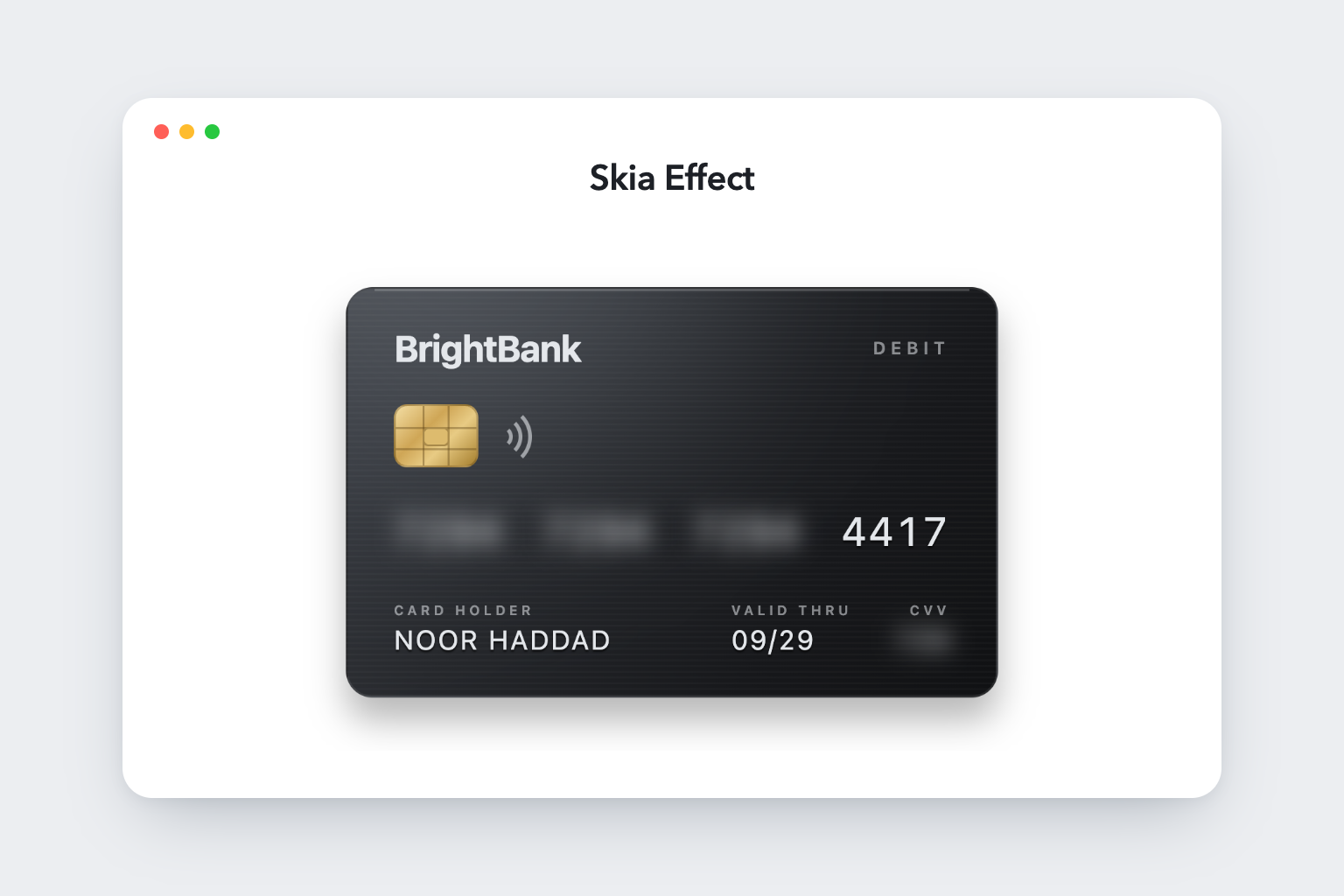

• Skia Effect — Skia on web needs the host app to load the CanvasKit WASM bundle first. The web build reproduces the composition with CSS filter and mix-blend-mode, which map one-to-one onto Skia's Blur and blendMode, and pulls in no WASM.

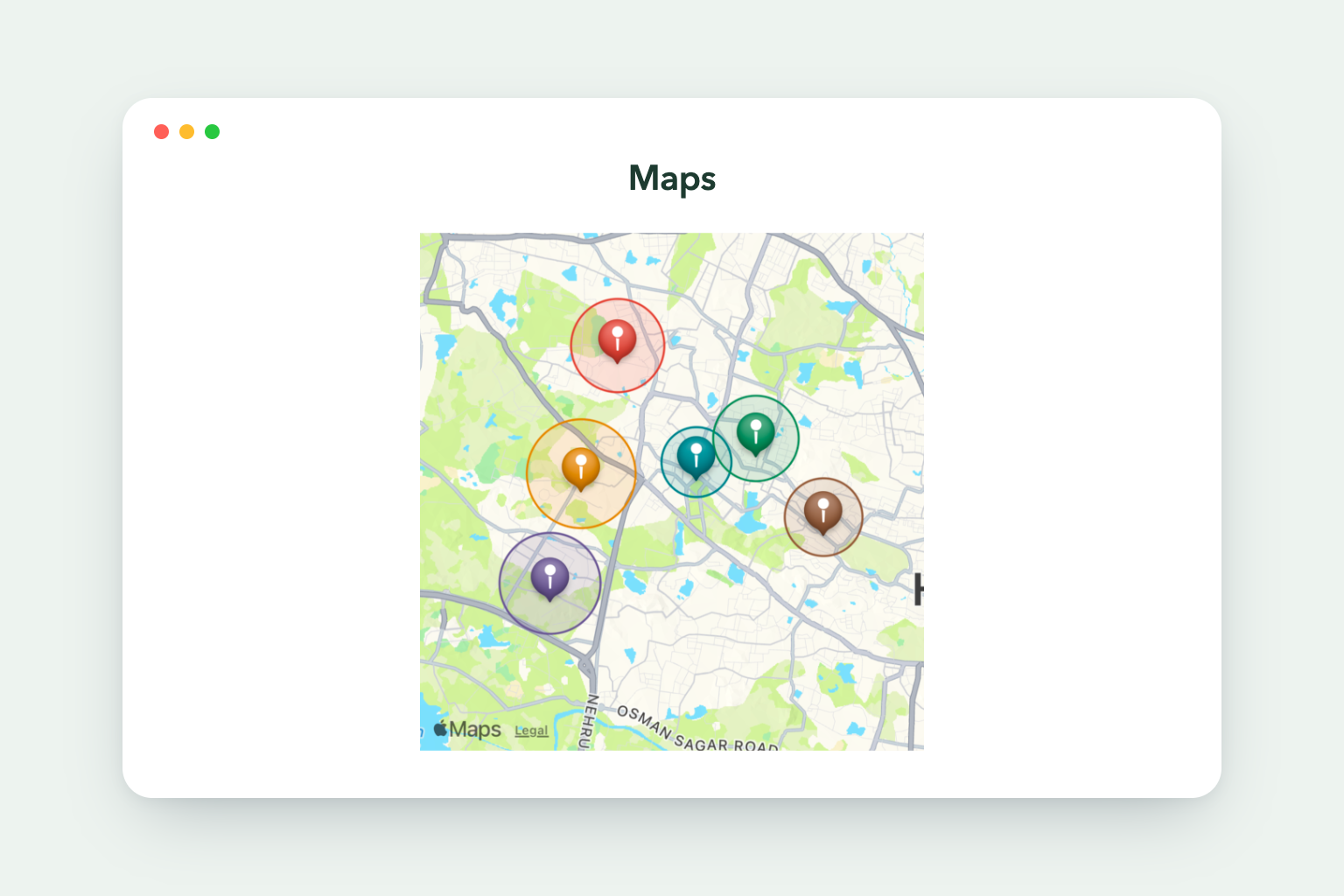

• Maps — react-native-maps wraps the native Google and Apple SDKs and has no web build. The web build renders Google Maps through the Maps JavaScript API (@vis.gl/react-google-maps), with the same props and event payloads. It needs a web key in webApiKey; without one the box is reserved and left empty.

⚠️ Reorder List on web: react-native-reorderable-list declares no native modules, so it runs on web and drag works — but upstream tests iOS and Android only. Treat web drag as best-effort and keep a non-drag path for web users.

Swipe Deck and Reorder List need a GestureHandlerRootView above them, on web as well as on device.

Full detail: Introduction → Platform Support in the Storybook, and spec/02-widgets.md.

---

Binding data

Collection-backed widgets take a dataset and normalize it, so an array, a JSON string, or a WaveMaker Studio variable wrapper ({ dataSet }, { content }, { data }) all work. An unresolved binding renders the empty state instead of throwing. *Field props say which column to read, so rows rarely need reshaping.

<AvatarStack dataset={teamVariable} nameField="fullName" imageField="avatar" />

---

Development

Work from the repository root (the directory holding package.json, components/ and stories/).

npm install
npm run storybook      # http://localhost:6006
npm run lint
npm run typecheck

Storybook runs every widget in the browser through react-native-web. SwipeDeck and ReorderList sit on react-native-reanimated v4 worklets, so .storybook/main.ts runs the react-native-worklets Babel plugin over them — see spec/04-storybook-development.md.

Repository layout

components/<widget>/    # library source — one folder per widget
components/index.ts     # package barrel
stories/<widget>/       # Storybook stories, one folder per widget
wmx/<widget>/           # WaveMaker Studio (WMX) manifests, icons, marketplace images
scripts/                # build, packaging and image-capture scripts
spec/                   # architecture notes for humans and agents
expo-app/               # device demo app consuming the built package via yalc

---

Building and publishing (maintainers)

npm run build:lib      # TypeScript compile → dist/npm-packages/widgets
npm run prepare:npm    # Write package.json, copy README/LICENSE, .npmignore
cd dist/npm-packages/widgets && npm publish

npm run generate:package runs both steps; the version comes from the root package.json. Pushing to main does the same through .github/workflows/publish-and-storybook.yml, which also deploys Storybook to GitHub Pages.

WMX packages for WaveMaker Studio:

npm run generate:wmx   # zips → dist/wmx/widgets/

Marketplace screenshots under wmx/<widget>/assets/images/ are captured from a running Expo web build — see the header of scripts/generate-widget-images.js.

---

Maintainers

Maintained by WaveMaker. Source: wavemaker/wm-react-native-widgets. Use GitHub Issues for bug reports and feature requests.

---

License

MIT — see LICENSE.
