Why

The collapsed operate-controls drawer (the peek showing Call CQ + Hunt) felt off — reported as "something about margins and whitespacing".

Measuring it, the geometry was genuinely lopsided:

	before	after
padding above the Call CQ / Hunt row	0 dp (butted against the handle)	10 dp
padding below it (i.e. above the tab bar)	6 dp	14 dp
gap between the docked status line and the sheet's rounded top edge	0 dp	10 dp

OperateDrawerPeekHeight was a flat 120.dp that happened to land 6 dp past the bottom of the 72 dp button row, so the buttons sat jammed onto the tab bar with all the peek's whitespace stacked above them in the 42 dp handle strip.

before	after

What changed

• The peek height is derived, not hard-coded: handle + top gap + the (now shared) OperatePrimaryRowHeight + bottom padding. It can no longer clip the primary row, and because the inter-row gap is larger than the bottom padding, the next row still can't peek through. Both invariants are unit-tested, so a future change to the button height or the row spacing can't silently re-break it.
• Handle strip 42 → 36 dp, and the "More controls" hint no longer bobs. A caption drifting up and down on an infinite animation directly above fixed buttons reads as uneven spacing rather than as an affordance — the up-chevron carries the message. (Easy to revert if you liked the bob.)

Verification

• testDebugUnitTest --tests …OperateControlsDrawerTest (13 tests, incl. 4 new geometry ones) — pass.

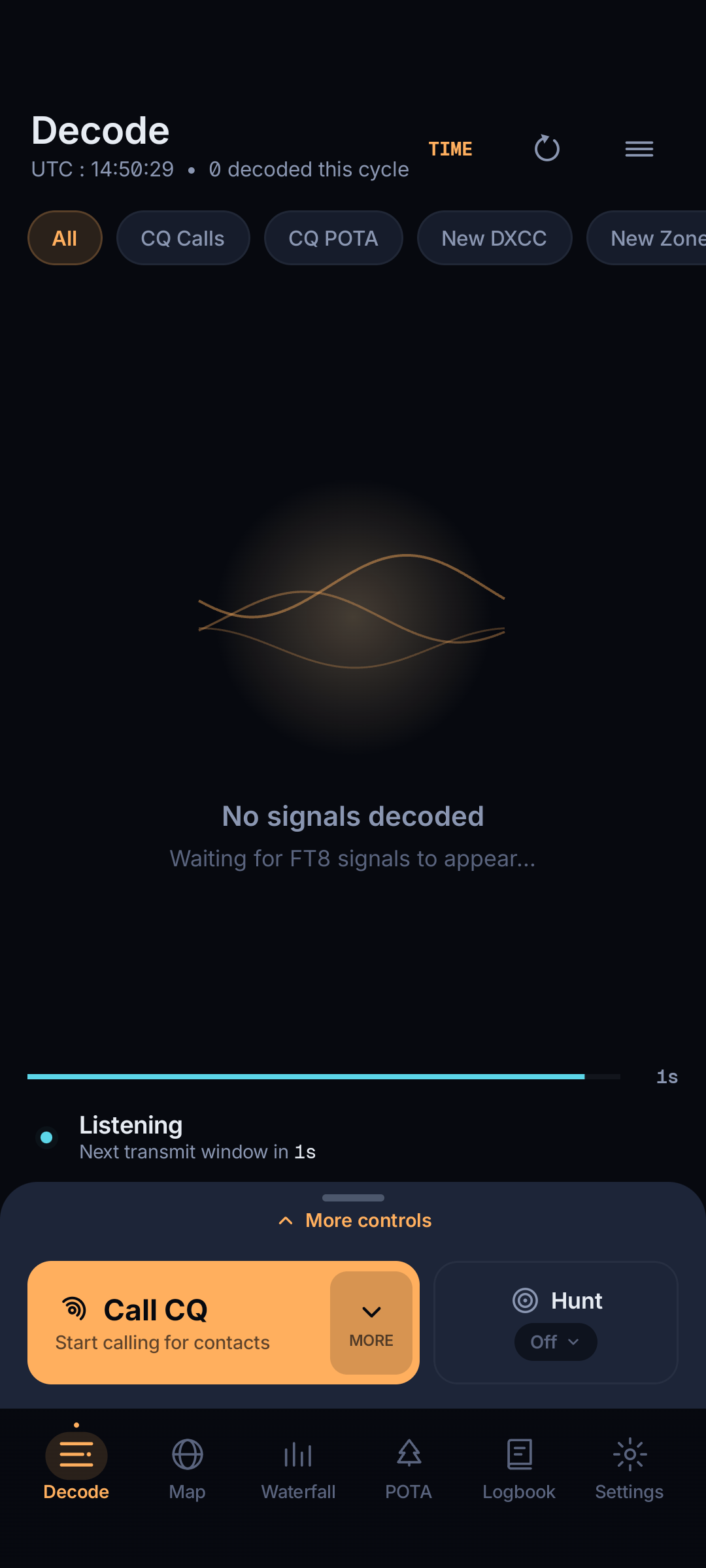

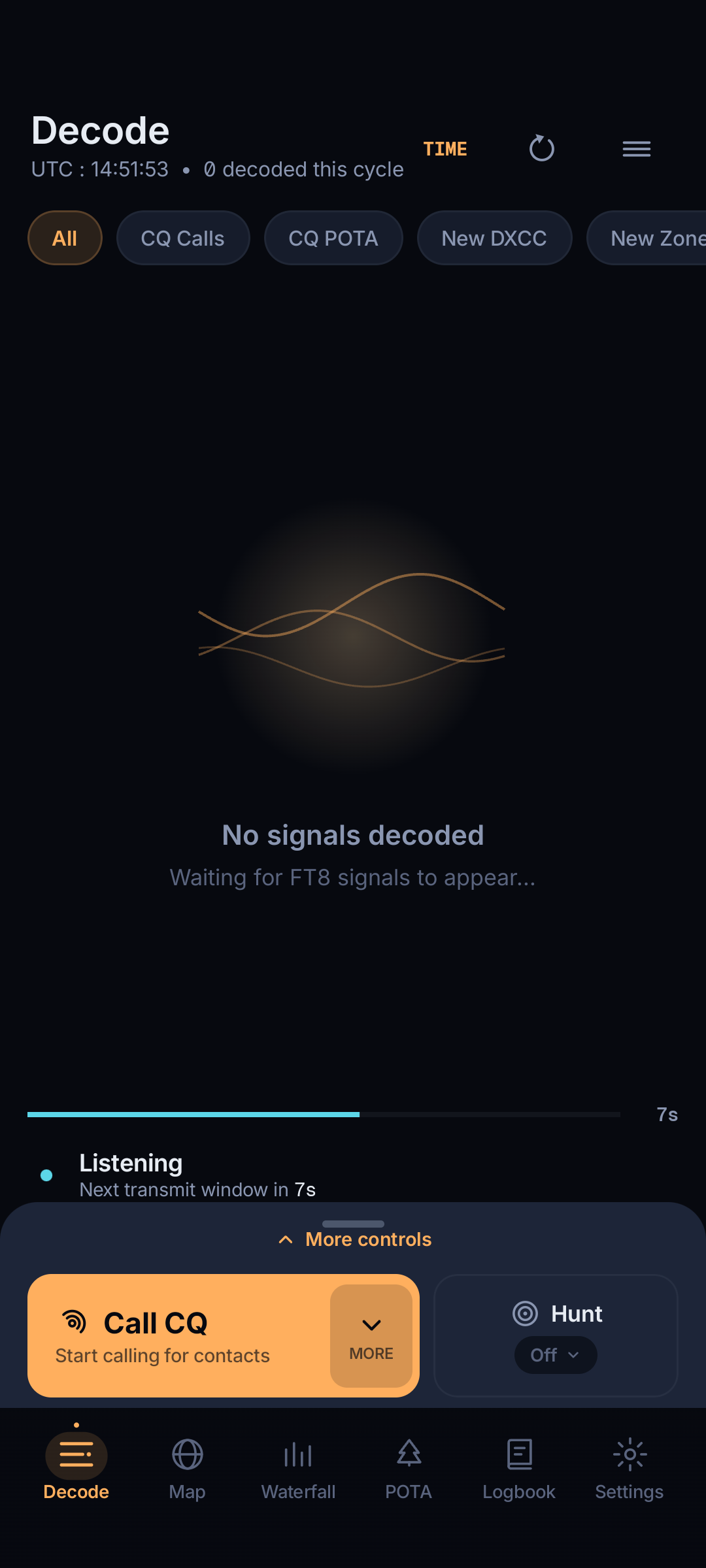

• Installed on an emulator (1080x2400, xhdpi) and measured from the screenshots above: clearance under the Call CQ row 6.1 dp → 14.1 dp.

Not yet checked on real hardware — no phone was attached to this machine.

🤖 Generated with Claude Code

https://claude.ai/code/session_01Lbd9brnZDMCzipgsu9n8Xg
