[patrickrb]

Why

Asked for: "we should draw the US states on the new map."

The redesign already ships us_states.json and strokes it — but behind a scale >= 3 zoom gate. That gate hides the layer in exactly the view a US operator gets: with a grid set and no decodes yet, the map auto-frames the operator at scale ~2.9, a hair under the threshold, so the state lines never appear.

What changed

Zoom was the wrong thing to gate on. The map COVERs its card, so the same scale means very different detail in the two projections:

view	longitude px/degree	state layer
standard map, zoom 1 (whole world in the card)	~6.3	full
standard map, auto-framed on the operator (~2.9x)	~18	full
azimuthal disc, zoom 1 (whole globe in the card)	~2.8	off
azimuthal disc, pinched in	ramps up	fades in

stateBorderAlpha() ramps 0 → 1 between 3 and 6 px per degree, fed by EquirectViewport.pxPerLonDegree (standard) and azimuthalPxPerLonDegree() (disc). Fading rather than snapping keeps a pinch from popping a whole layer into existence. The stroke stays a shade under the national borders so the basemap hierarchy holds.

Thresholds are tuned against the real map card (~1000x1140 px on a 1080p phone), not a full-screen canvas — the unit tests assert against those measured dimensions.

Verification

• testDebugUnitTest (full suite) — pass; MapRedesignTest gains 5 tests covering the ramp, its monotonicity, and both projections at their default views.

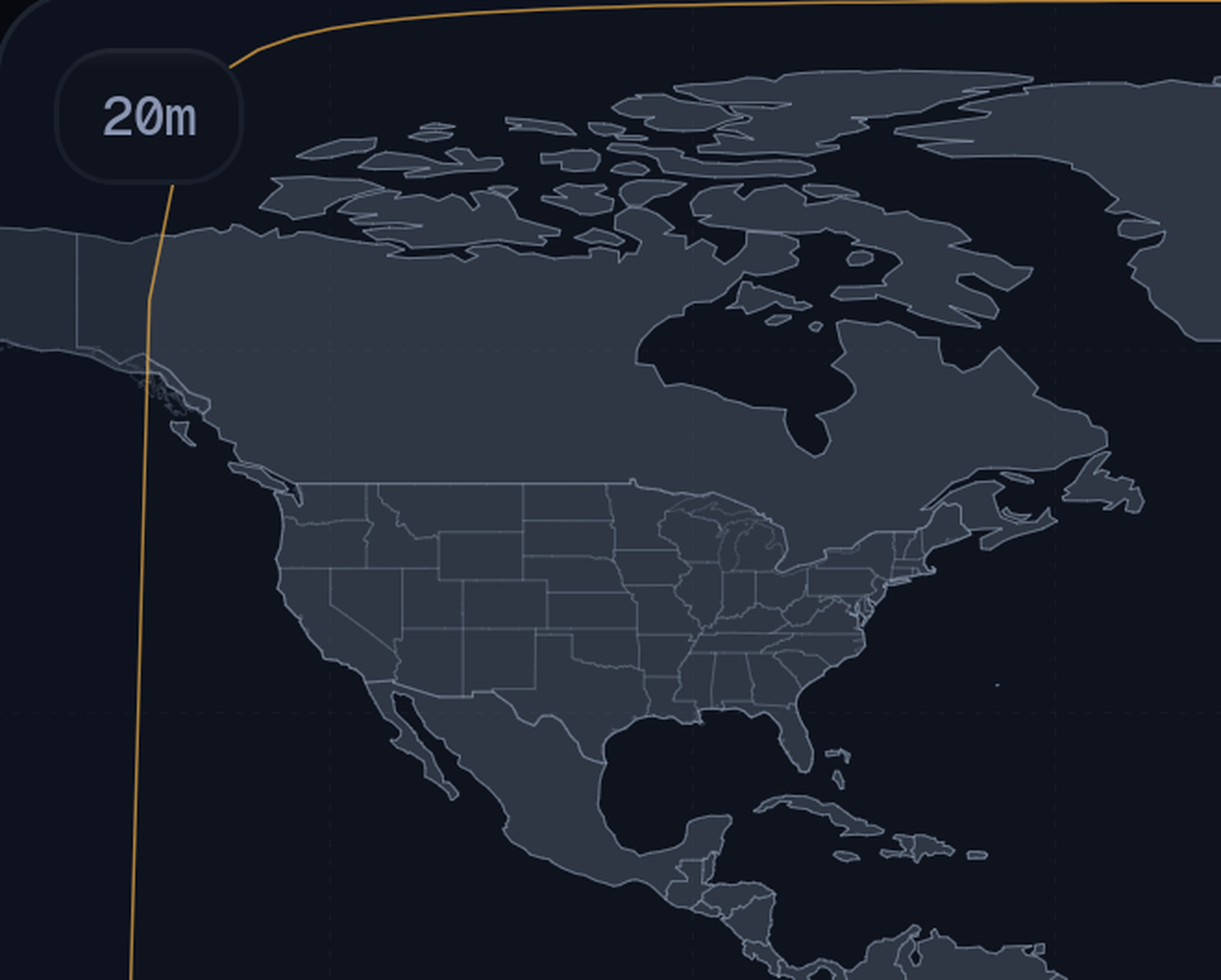

• Installed on an emulator and confirmed visually at the standard map's default zoom (screenshot above; it is a 2x crop — at 1:1 the lines are subtler).

Not yet checked on real hardware — no phone was attached to this machine.

Follow-up (not in this PR)

UsStateLabels (two-letter abbreviations at state centroids) is already parsed and used by the QSO-sheet mini-map; dropping those onto this map at high zoom would be a small follow-up if you want them.

🤖 Generated with Claude Code

https://claude.ai/code/session_01Lbd9brnZDMCzipgsu9n8Xg

[codecov]

Codecov Report

❌ Patch coverage is 42.10526% with 11 lines in your changes missing coverage. Please review.
✅ Project coverage is 41.50%. Comparing base (c603d1c) to head (50285a9).

Files with missing lines	Patch %	Lines
...main/kotlin/radio/ks3ckc/ft8af/ui/map/MapScreen.kt	38.88%	11 Missing ⚠️

Additional details and impacted files

@@            Coverage Diff            @@
##                dev     #914   +/-   ##
=========================================
  Coverage     41.50%   41.50%
  Complexity      252      252
=========================================
  Files           280      280
  Lines         33973    33986   +13
  Branches       4033     4034    +1
=========================================
+ Hits          14100    14106    +6
- Misses        19584    19591    +7
  Partials        289      289

Flag	Coverage Δ
android	17.61% <42.10%> (+0.01%)	⬆️
native	9.93% <ø> (ø)

Flags with carried forward coverage won't be shown. Click here to find out more.

Files with missing lines	Coverage Δ
...in/kotlin/radio/ks3ckc/ft8af/ui/map/MapViewport.kt	100.00% <100.00%> (ø)
...main/kotlin/radio/ks3ckc/ft8af/ui/map/MapScreen.kt	7.79% <38.88%> (+0.32%)	⬆️
