Pass each streamed EFF frame's own bit depth to gr_update_texture - #7882

Open
dustinspace217 wants to merge 1 commit into
scp-fs2open:masterfrom
dustinspace217:graphics/vulkan-eff-dds
Open

dustinspace217 wants to merge 1 commit into
scp-fs2open:masterfrom
dustinspace217:graphics/vulkan-eff-dds

Conversation

@dustinspace217

@dustinspace217 dustinspace217 commented Oct 17, 2026 •

Copy link
Copy Markdown
Contributor

Fixes #7701

What?

Streamed EFF animations now tell the renderer each frame's real bit depth instead of always 32.

Why?

Under Vulkan, main hall and other streamed animations made of 24-bit frames draw as garbage, and the game can crash at random. WCS's uncompressed DDS frames hit it, and so do 24-bit JPG, PNG and TGA frames, which are common in mods.

How?

generic_render_eff_stream passed 32 bpp for every frame, but 24-bit frames keep 3 bytes per pixel after locking. OpenGL takes the depth from the texture, so it was unaffected. Vulkan trusted the 32 and copied 4 bytes per pixel, which scrambled the image and read past the end of the frame buffer; that over-read is the likely cause of the crashes. The caller now passes the locked frame's own bpp. HUD-colored animations still pass 8, so their path is unchanged.

Screenshots?

A test mod replaces the main hall's 2_maincrane with an EFF of 20 frames (256x128, color bars and a moving marker), one row per frame format:

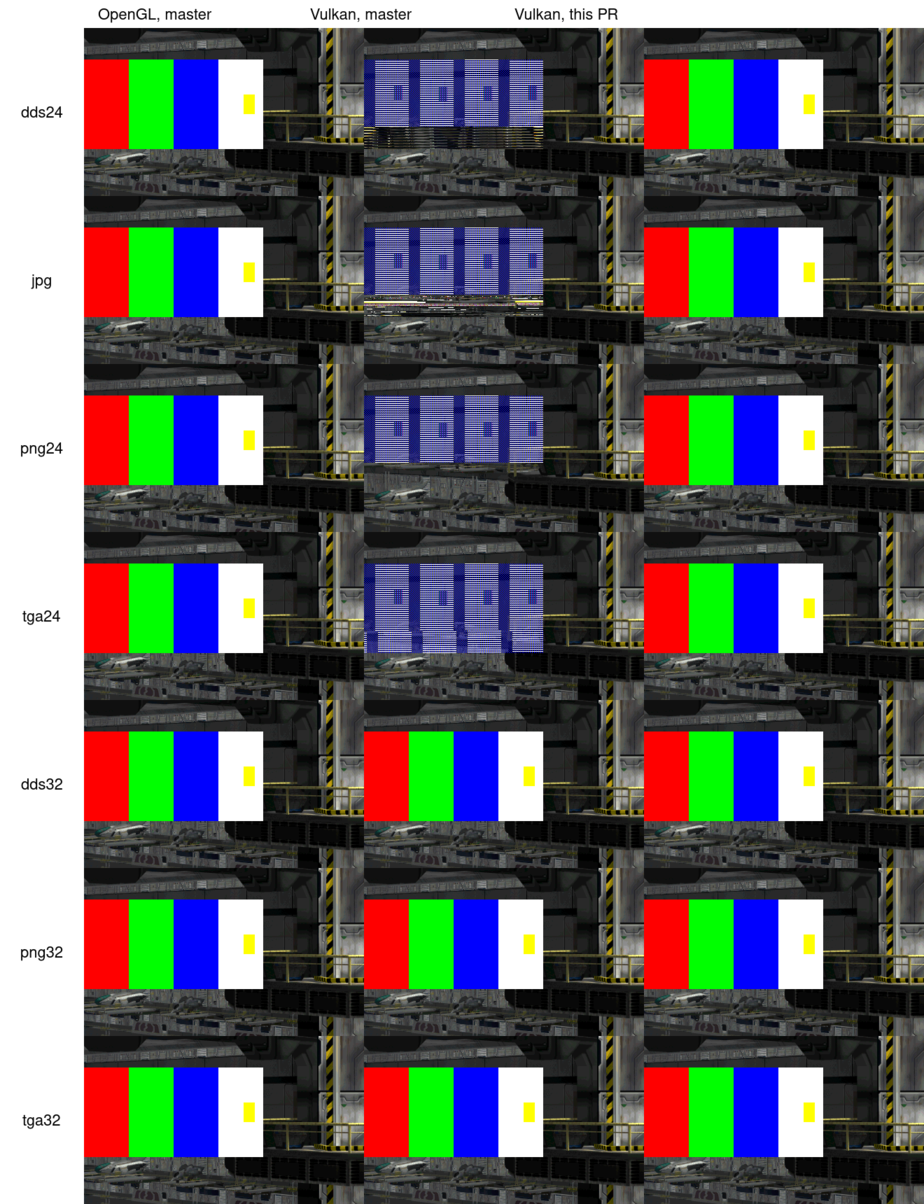

EFF frame formats, OpenGL master, Vulkan master, Vulkan with this PR

Testing?

Retail FS2 data, 1024x768, Linux, Debug builds. "Master" is a build whose generic.cpp, Vulkan texture and bmpman code is identical to master. Seven frame formats (DDS, JPG, PNG and TGA at 24 bits; DDS, PNG and TGA at 32 bits) on both renderers, master and this branch:

  • OpenGL: master and this branch are pixel-identical for every format.
  • Vulkan with this branch: pixel-identical to OpenGL for every format.
  • Vulkan on master: every 24-bit format is broken; the 32-bit ones are fine.

Also on both renderers: the retail main hall, a color and a grayscale EFF played from a script with gr.loadStreamingAnim, and SM1-01 in flight. All behave as on master except the color script EFF, which this fixes on Vulkan. I don't have WCS, so it's untested there.

Anything Else?

Two older problems turned up that this doesn't touch. A grayscale (HUD-colored) streamed EFF draws as a plain block on Vulkan, before and after this change. An EFF whose frames grow after the first (a 32-bit frame after a 24-bit one) corrupts the heap with either renderer; that one is #7883. Written with Claude Code; the investigation, review and testing ran on my machine.

generic_render_eff_stream told the renderer every streamed EFF frame was
32 bpp. Frames from uncompressed 24-bit DDS, JPG or 24-bit TGA files keep
3 bytes per pixel after locking. OpenGL takes the depth from the texture
and was unaffected, but Vulkan trusted the 32 and copied 4 bytes per pixel:
the animation was drawn as garbage and the copy read past the end of the
frame's buffer. HUD-colored animations still pass 8.
